UV-VIS200
Applications：

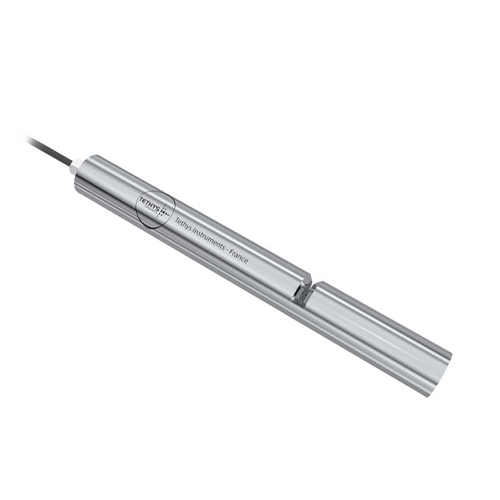

Product Name: UV-VIS200 Multi-parameter Water Quality Analyzer
Brand: TETHYS
※Measurement Parameters: TSS, NO3, COD, BOD, TOC, UV254, Color

※Compatible with EL200 controller for measurement

※Temperature Range: 0-50°C

※Verified light source technology, lifespan > 10 years
  • ￭ Utilizes UV spectroscopy for multi-parameter measurement
  • ￭ High stability and low maintenance
  • ￭ Power Supply: 110-230 VAC 50/60 Hz; 12V DC 3A
  • ￭ Patented flow cell design, resistant to clogging even with high suspended solids content
  • ￭ Built-in automatic cleaning system with auto-zero calibration
  • ￭ Minimal chemical usage, simple maintenance (minimal reagents required for ammonia, sulfide, etc.)
  • ￭ Basic parameter modules include: COD (UV254nm), nitrate, hydrogen sulfide, hydrocarbons (oil, phenol, etc.), chlorophyll A, Rhodamine, phosphate, pH/ORP, conductivity, turbidity, dissolved oxygen, color, ammonia nitrogen
  • ￭ UV500 model equipped with 2048-pixel high-resolution spectrometer scan, wavelength from 180 nm to 750 nm
  • ￭ Touchscreen color display
  • ￭ Built-in data logger for 5000 sets of data
  • ￭ Customizable parameter range
  • ￭ Simultaneous measurement of up to 6 water samples
  • ￭ Supports multi-parameter measurement for up to 16 groups
  • ￭ RS232/RS485 communication interface
  • ￭ USB port, Wi-Fi (optional)
